100NB CLAMP ON GATE HINGE SET - ADJUSTABLE
Heavy‑duty adjustable clamp‑on hinge set for 100 NB posts (≈114.3 mm OD) to carry 25 NB (≈33.7 mm OD) pipe gates. Bolt‑on, no‑weld installation with included bolts, nuts and shake‑proof serrated washer for secure, serviceable gate hanging.
Key specifications
- Fits post: 100 NB (approx. 114.3 mm outside diameter).
- Suits gate:25 NB (approx. 33.7 mm OD).

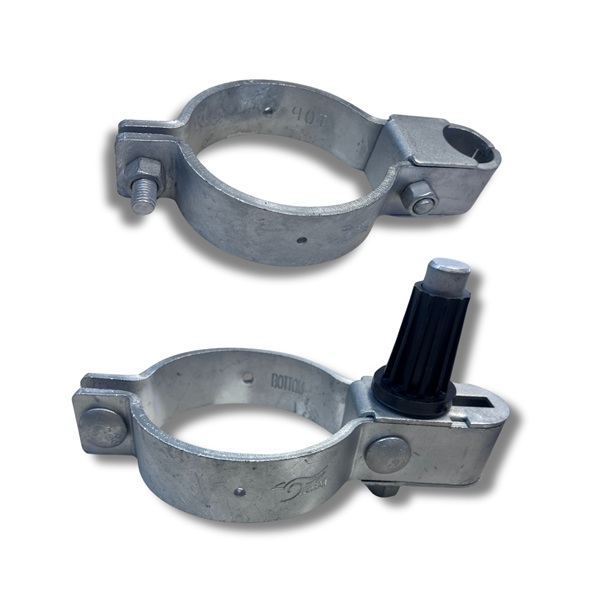

- Set:2‑piece clamp (top hinge + adjustable bottom gudgeon).
- Adjustment: Bottom gudgeon adjustable for levelling and correcting post lean.
- Fixings included: Bolts, nuts and serrated shake‑proof washer.
- Material / finish: Heavy gauge steel; galvanised option available for corrosion resistance.
Features and benefits
- Adjustable alignment — corrects gate height and compensates for leaning posts or sloping ground without post modification.
- No welding required — clamps on quickly for fast installation, repositioning or temporary setups.
- Secure fastening — serrated shake‑proof washer prevents fastener loosening under vibration and heavy use.
- Durable construction — heavy gauge steel and optional galvanised finish deliver long service life in rural and industrial environments.
- Reduced wear option — compatible with nylon bush inserts to minimise metal‑on‑metal wear and preserve smooth swing.
Typical applications
- Farm and livestock gates, stockyard gates, rural fencing, ute and access gates, chain‑mesh and pipe gates, temporary or permanent installations where field adjustability is required.
Installation tips
- Position clamp at required height, loosely fit bolts, check gate swing and alignment, then evenly torque all fixings.
- Use anti‑seize or light grease on the gudgeon pin and consider a nylon bush to reduce wear and noise.
- Double‑check post plumb and gate clearance before final tightening because the bottom gudgeon is adjustable but requires correct initial placement for optimal operation.
Why choose this hinge set
Choose this 100 NB adjustable clamp‑on hinge set for a fast, flexible and trade‑ready solution that simplifies gate hanging, reduces downtime and lets you fine‑tune alignment on site without welding.
