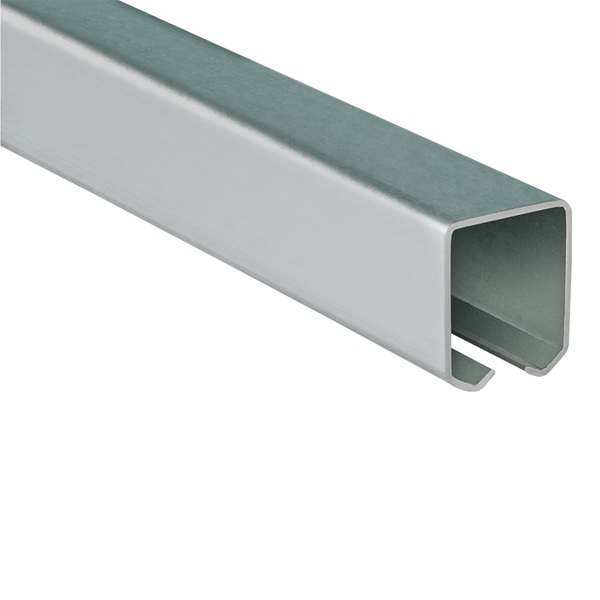

60mm Wide Overhead Sliding Door Track 3m Suits 55mm Roller
Heavy‑duty galvanized U‑channel overhead track, supplied as a 3.0 m length. Formed from robust steel with a 2.0 mm section thickness, engineered to run 55 mm hanging rollers (rollers rated 300 kg per pair).
Key benefits
- Trade‑grade strength: formed steel profile with a 2.0 mm wall thickness for straightness and load distribution.
- Corrosion resistance: galvanized finish for outdoor and semi‑exposed installations.
- Ready for 55 mm rollers: profile dimensions match 55 mm hanging rollers rated to 300 kg per pair for reliable operation.
- 3.0 m single length: easy to transport and join on site for longer runs; suitable for retrofit and new installations.
Technical specifications
| Attribute | Value |
|---|
| Profile width (B) | 60 mm |
| Height (H) | 48 mm |
| Groove/clearance (C) | 34 mm |
| Section thickness (S) | 2.0 mm |
| Weight (per metre) | 3.40 kg/m |
| Length | 3.0 m |
| Suitable rollers | 55 mm diameter (300 kg per pair) |
Installation notes
- Use appropriate track joiners, clamp plates or splice brackets when joining multiple lengths to maintain alignment and straightness.
- Secure track to rated hanging brackets or structural supports at manufacturer‑recommended centres to prevent sagging under load.
- Ensure roller‑to‑track clearance and wheel profile compatibility before final installation; test door travel and adjust supports if required.
- Keep track clean and free of debris for smooth, long‑life operation.
