Fixed Hinges suits 25mm, 30mm Square and 38mm x 25mm
Maintenance-Free Gate Hinge – Improved Design
Description
No welding required—protect your gate’s finish and install on steel or aluminium frames in minutes. Our upgraded hinge features a thicker, stronger metal construction and harder-wearing nylon bush inserts for extra durability and a silky-smooth swing.
Key Features
- Improved design with 5 mm steel (vs. standard 4 mm) for enhanced strength
- Hard-wearing Nylon bush inserts top and bottom—no metal-to-metal contact
- Screw-on installation: fast fit without welding or coating damage
- Maintenance-free: no oiling required, quiet operation
- Suits pool gates, Colorbond gates, aviaries, farm fencing and more
Specifications
Specification | Details |
---|
Material & Coating | 5 mm zinc-plated steel |
Gate Frame Requirement | Minimum 25 × 25 mm |
Post Size Requirement | Minimum 25 × 25 mm |
Ideal Gap | 20 mm |
Load Rating (per pair) | Up to 80 kg |
Dimensions (H × L × W) | 125 × 60 × 30 mm |
Weight | 470 g |

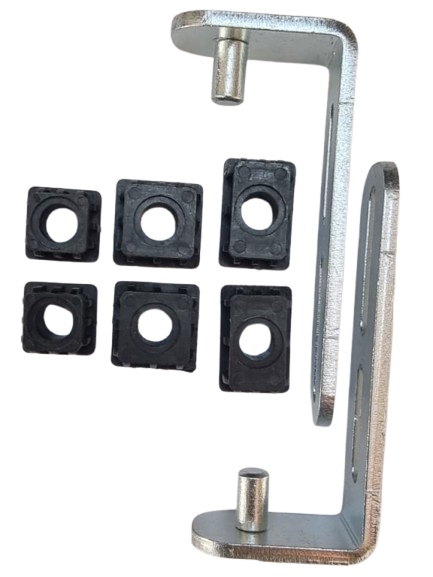

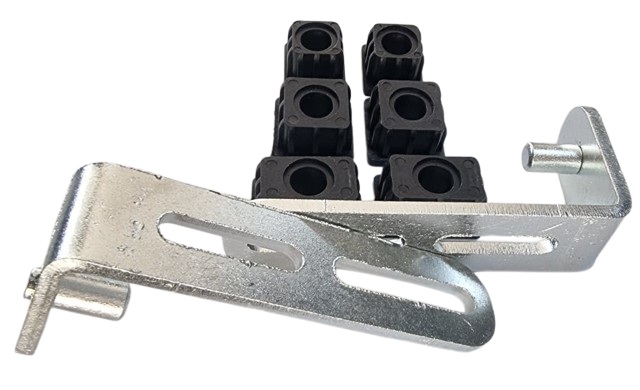

Kit Includes
- 2 × L-shaped hinges
- 2 × Nylon bush inserts (fits 25×25 mm, 30×30 mm & 38×25 mm frames)
