SMALL COMPRESSION LOCKS - BLACK FINISH

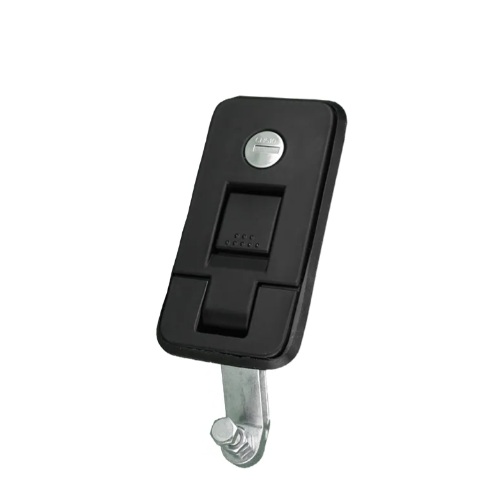

The 2960SB-E05-C small compression lock in a durable black powder-coated finish provides reliable, vibration-resistant latching for industrial enclosures, electrical cabinets, access panels and custom equipment housings. Designed for adjustable compression tension and flush-mounted installation, this black compression lock combines a sleek appearance with high-strength performance.
Key Features
- Adjustable compression range from 0.5 mm to 3 mm for precise sealing
- High-strength steel construction with corrosion-resistant black powder coat
- Flush-mounted profile minimizes protrusion on control panels and instrument cases
- Threaded M5 × 0.8 mm mounting for quick installation in panel thicknesses up to 3 mm
- Operating temperature range from –20 °C to 80 °C
- Rated for thousands of open-close cycles without loss of compression
Technical Specifications
- Model Number: 2960SB-E05-C
- Lock Type: Small compression lock
- Material: High-strength steel
- Finish: Black powder-coated
- Compression Range: 0.5 mm – 3 mm
- Thread Size: M5 × 0.8 mm
- Mounting Hole Diameter: 6.5 mm
- Operating Temperature: –20 °C to 80 °C
Applications
This small compression lock is ideal for securing:
- Industrial and electrical enclosures
- Control panels and instrument housings
- Access doors and maintenance panels
- Mobile toolboxes, equipment cases and transport containers
