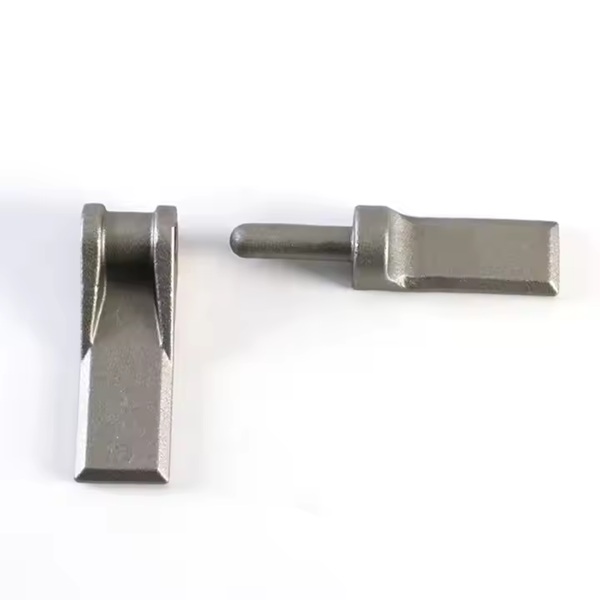

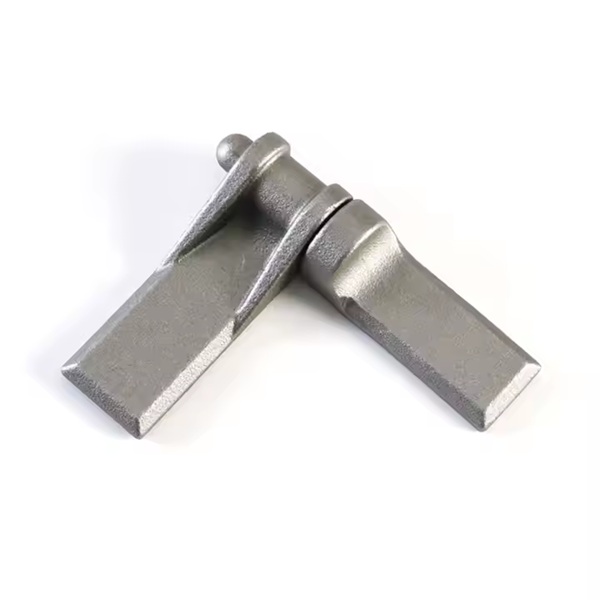

CAST IRON HINGE WITH PIN + CAST IRON HINGE WITH HOLE

CAST IRON HINGE WITH PIN + CAST IRON HINGE WITH HOLE – 01151/01155-C

Built for heavy-duty use in trailers, tailgates, machinery enclosures, and fabrication projects, this cast iron hinge set combines rugged performance with dependable alignment. Supplied in raw cast iron, these weld-on components offer solid articulation with no built-in corrosion resistance—ideal for applications where durability matters and surface treatment will be applied post-installation.

Key Features:

• Raw cast iron construction for uncompromising strength and load-bearing performance
• Weld-on design ensures a secure, vibration-resistant mount in industrial environments
• Pin dimensions: 16.5mm diameter, 103mm length; Hinge hole: 16mm diameter, 83mm length
• Precision-fit gudgeon and socket system minimizes lateral movement under load
• Supplied uncoated – suitable for custom rustproofing or paint finishes

Applications:

• Tailgates and drop-side trailers
• Agricultural and mining equipment
• Fabrication jobs requiring permanent hinge installations
• Gate and panel systems needing high-strength articulation

Note: As these hinges are supplied in raw cast iron, rust prevention measures such as galvanizing, painting, or powder coating are recommended prior to outdoor use.
