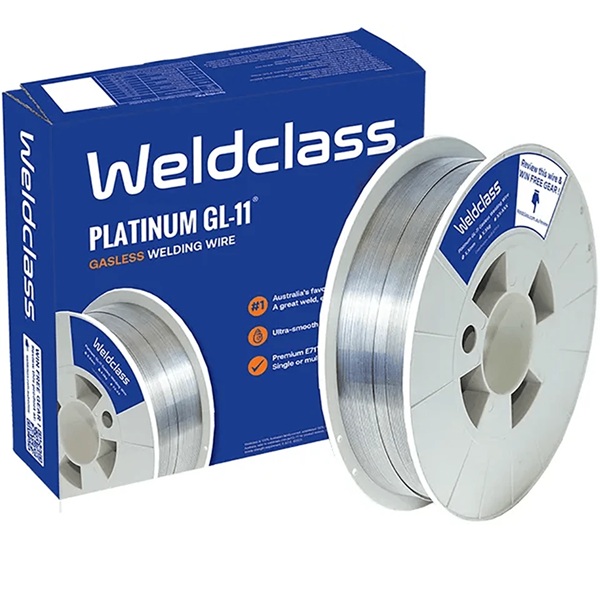

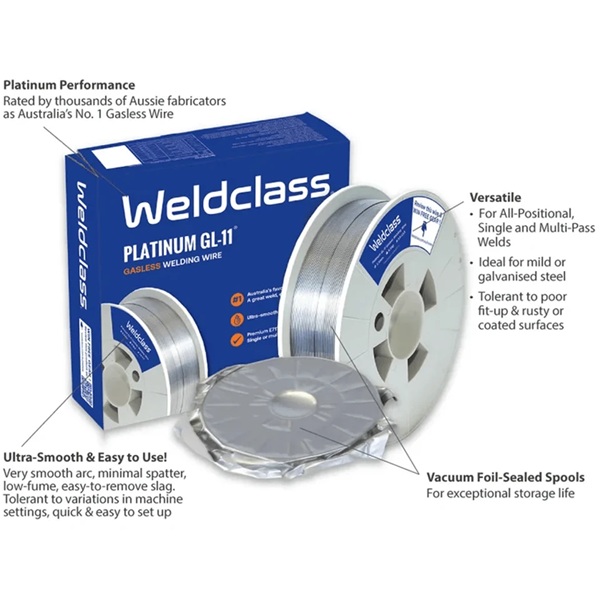

These gasless MIG Welding Wire spools are ideal for portable & mobile use as no gas is required. Easy to use even on steel that is slightly rusty, dirty or painted & is suitable for all welding positions for single or multi-pass welds. This premium, industrial grade MIG Wire comes 0.9mm thick on a 4.5kg vacuum foil sealed spool for exceptional storage life.
PLATINUM GL-11® is the first choice of welders across Australia & beyond. Seriously smooth arc, easy-to-use, low spatter, low fume, easy de-slagging, multi-pass & all-positional. Great for mild & galvanised steels. E71T-11 classification.
Suitable for welding mild & medium tensile steels not exceeding 510Mpa. Commonly used for light structural work, general fabrication & repairs.
| Wire Size | 0.9mm |
| Spool Size | 200mm / 4.5kg |
| Classification/Standard | AWS A5.20 E71T-11, AS/NZS ISO 17632 BT 49 Z T11 N A |
| Typical Composition (%) | C 0.19% / Si 0.35% / Mn 0.60% / P 0.011% / S 0.006% / Al 1.2% |
| Typical Mechanical Properties Of All-Weld Metal | Yield Strength 520 Mpa / Tensile Strength 590 Mpa / Elongation 21% |
| Positions | All positional: Flat, V-up, V-down, Overhead |
| Polarity | DC- (Electrode/Wire/Torch Negative & Earth Positive) |
| Current Range (amps) | Horizontal: 80 - 200, Vertical up & Over-head: 70 - 150 |
| Voltage Range | Horizontal: 12 - 17, Vertical up & Over-head: 12 - 15 |
