SCREW ON CONNECTORS TO SUIT 100MM POST

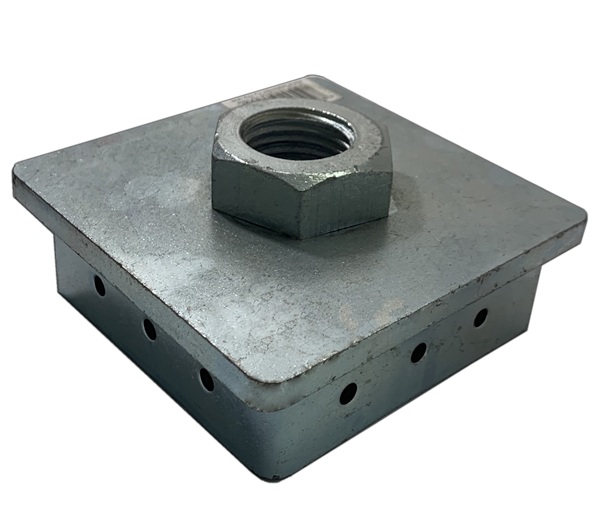

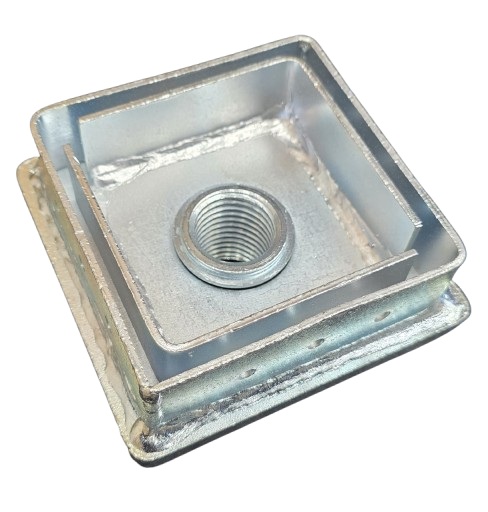

ASP30x100EF Ezy‑Fix Adjustable Stump Plate

A heavy‑duty, no‑weld adjustable stump plate engineered for 100 mm × 100 mm SHS stumps. Designed to accept M30 threaded rod, the ASP30x100EF provides fast installation and long‑term adjustability so you can correct settling, heave, or movement without dismantling the structure.

Key Benefits

• Fast installation — slides over the SHS and secures with TEK screws through pre‑drilled pilot holes.
• No welding required — reduces labour, site time and safety risks.
• Easily adjustable — raise or lower stumps as ground conditions change.
• Rotatable nut — allows precise alignment and simple fine tuning.
• Engineer certified — certification available on request for project documentation.

Installation Summary

• Slide the plate over the top of the 100 mm × 100 mm SHS stump.
• Align and fasten using TEK screws through the pre‑drilled pilot holes.
• Fit M30 threaded rod and rotate the nut to set the required height and level.
• Re‑adjust as needed when ground movement occurs.

Specifications

Compliance and Certification

Complies with National Construction Code A5.2. Engineer’s certification is available on request to support inspections and project records.

Order Code: ASP30x100EF — please specify when ordering to ensure correct fitment.
