SCREW ON CONNECTORS TO SUIT 75MM POST

Product Overview

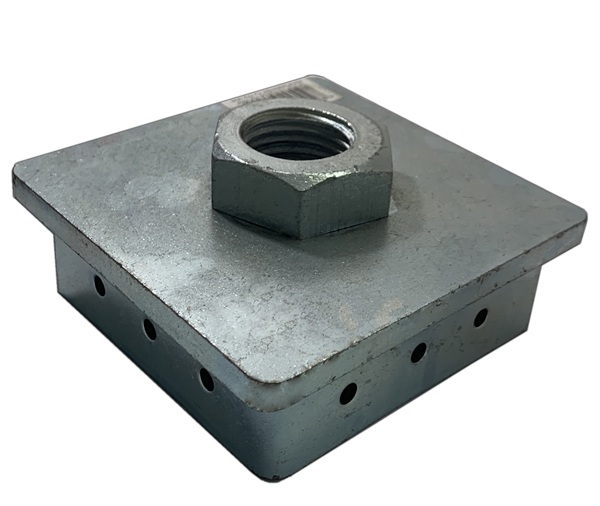

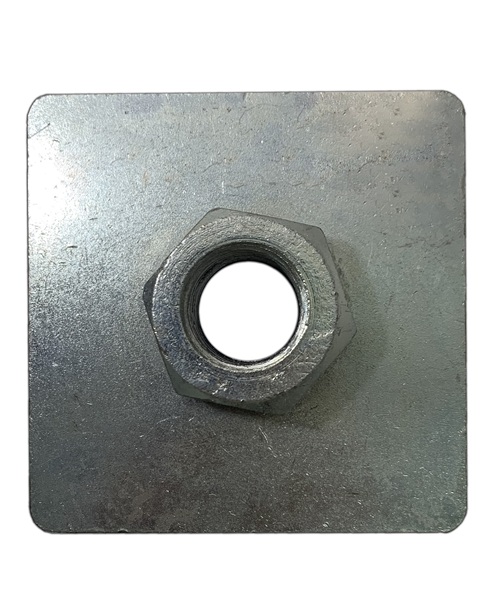

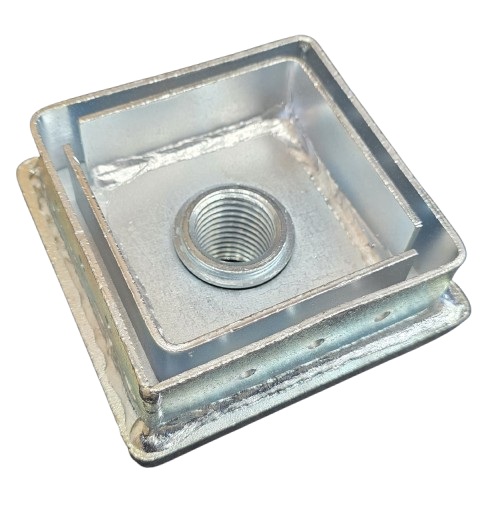

ASP30x75EF Ezy‑Fix Adjustable Stump Plate
A heavy‑duty, no‑weld adjustable stump plate designed for 75 mm × 75 mm SHS stumps. Accepts M30 threaded rod and provides fast installation plus long‑term adjustability so you can correct settling, heave, or movement without dismantling the structure.

Key Benefits

• Quick installation — slides over the SHS and secures with TEK screws through pre‑drilled pilot holes.
• No welding required — reduces labour, site time and safety risks.
• Durable adjustability — raise or lower stumps as ground conditions change.
• Rotatable nut — enables precise alignment and easy fine tuning.
• Engineer certified — documentation available on request for project records.

Installation Summary

• Slide the plate over the top of the 75 mm × 75 mm SHS stump.
• Align and fasten using TEK screws through the pre‑drilled pilot holes.
• Fit M30 threaded rod and rotate the nut to set the required height and level.
• Re‑adjust as needed when ground movement occurs.

Specifications

Compliance and Certification

Complies with National Construction Code A5.2. Engineer’s certification is available on request to support inspections and project documentation.

Order Code: ASP30x75EF — please specify when ordering to ensure correct fitment.
