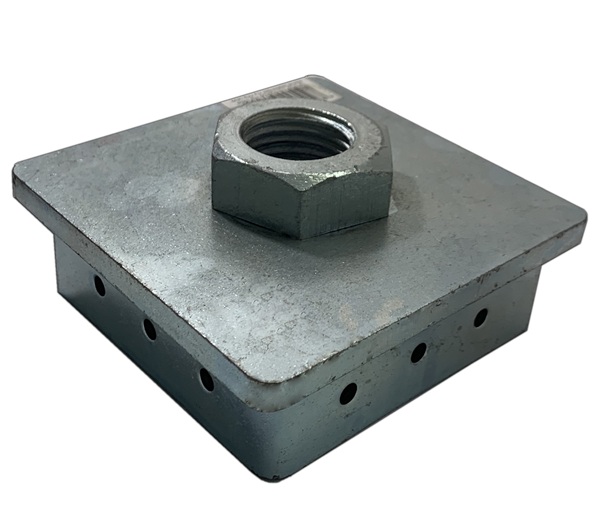

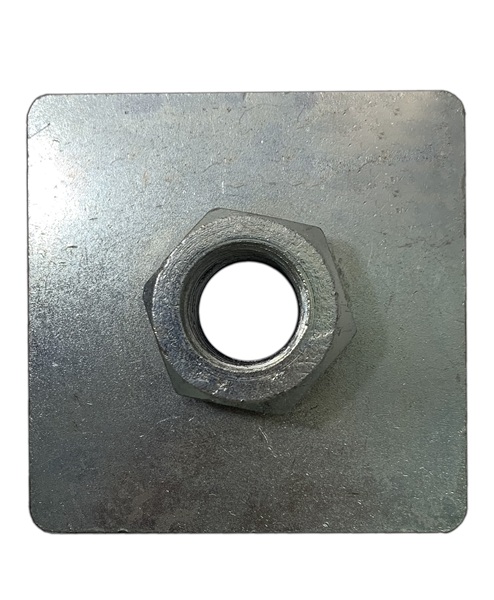

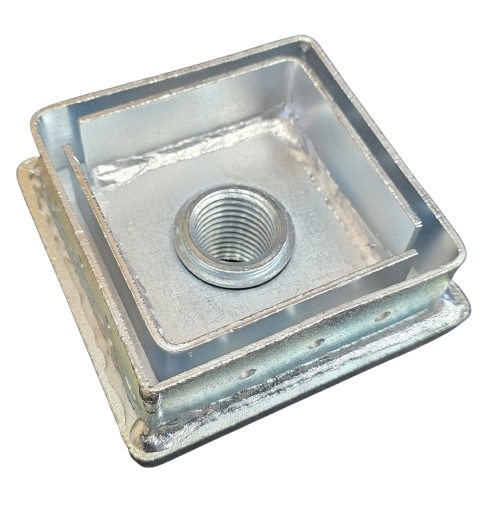

ASP30x90EF Ezy‑Fix Adjustable Stump Plate

A heavy‑duty, no‑weld adjustable stump plate engineered for 90 mm × 90 mm SHS stumps. The ASP30x90EF accepts M30 threaded rod and delivers fast installation plus reliable, long‑term adjustability so you can correct settling, heave, or movement without dismantling the structure.

Key Benefits

• Fast installation — slides over the SHS and secures with TEK screws through pre‑drilled pilot holes.
• No welding required — reduces labour, site time and safety risks.
• Durable adjustability — raise or lower stumps as ground conditions change.
• Rotatable nut — enables precise alignment and easy fine tuning.
• Engineer certified — documentation available on request for project records and inspections.

Installation Summary

• Slide the plate over the top of the 90 mm × 90 mm SHS stump.
• Align and fasten using TEK screws through the pre‑drilled pilot holes.
• Fit M30 threaded rod and rotate the nut to set the required height and level.
• Re‑adjust as needed when ground movement occurs.

Specifications

Compliance and Certification

Complies with National Construction Code A5.2. Engineer’s certification is available on request to support inspections and project documentation.

Order Code: ASP30x90EF — please specify when ordering to ensure correct fitment.
